AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 1850-1990mhz system

Name: AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 18501990mhz system
Brand: AMEISON
Price: 1 USD

China AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 1850-1990mhz system wholesale

Brand Name : AMEISON

Model Number : AMXF-1900-11

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Product name : Omnidirectional Antenna

Frequency : 1850-1990mhz

Gain : 11dBi

VSWR : ≤1.5

Impedance : 50Ω

Polarization : Vertical

connector type : N male

Dimensions : Φ20*1270

color : gray

Contact Now

AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 1850-1990mhz system

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

1710～1990MHz system

Point-to-multipoint system

AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 1850-1990mhz system

AMXF-1900-11 Electrical Specifications
Frequency range(MHz)	1850-1990
Bandwidth(MHz)	140
Gain(dBi)	11
Half-power beam width(°)	H:360 V:7
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ20*1270
Antenna weight(kg)	0.54
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50

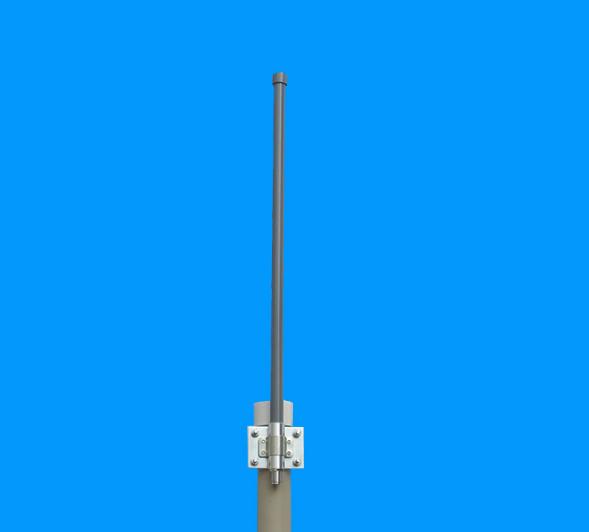

AMEISON manufacturer Fiberglass Omnidirectional Antenna 11dbi N female Gray color for 1850-1990mhz system Images
